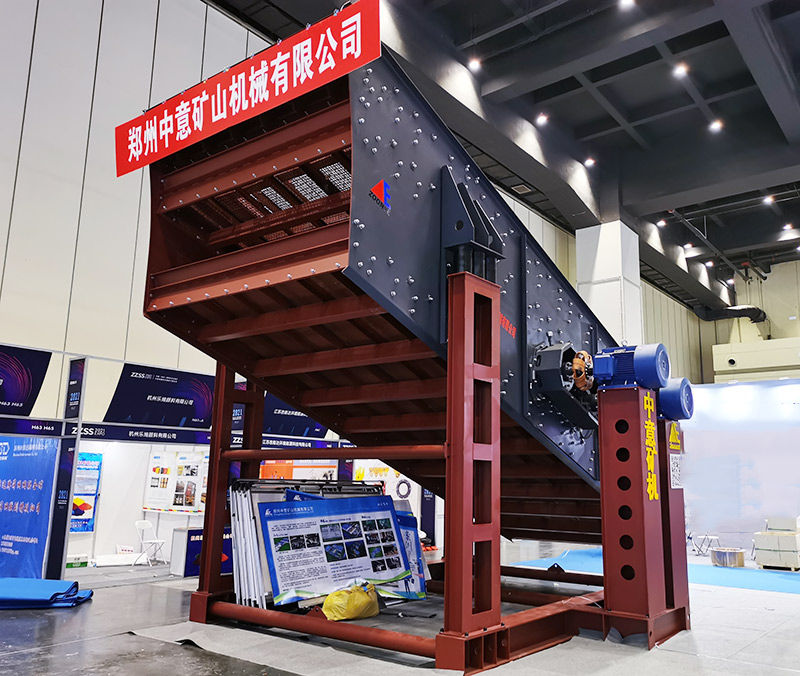

YAX稀油润滑振动筛采用特殊措施保护轴承舒适的工作，振动器噪声低于75分贝，轴承温度小于55度。激振器主轴采用优质合金钢40Cr调质处理，经数控车床，粗车和精车并精外圆磨床制轴承台阶处加工而成。减震弹簧采用钢丝弹簧减震效果佳，同时带有隔音降噪聚氨酯垫片，整体转动采用变速传动，使振动筛性能更加稳定，同时采用倒速结构能降低电机功率，节能环保。
振动筛侧帮采用锅炉板Q245R材质，韧性和冲击性能均较佳，整体侧帮采用激光割整体一次割制而成，保证了数据安装的准确性。
轴承室强度高，抗震性能更高，采用数控加工中心精镗孔，保证安装尺寸的可靠性。
利用振子激振所产生的往复振动，将大小不同的物料群通过筛面进行筛分。新型静音振动筛，稀油润滑免维护筛分，大激振力，维修方便快捷，柔性连接，运行平稳，筛分效率高，处理量大，寿命长，电耗低，噪音小。
稀油润滑振动筛
大型矿用振动筛
砂石料振动筛
稀油润滑振动筛报价
稀油润滑振动筛厂家
| 型号 | 筛网层数 | 筛网倾角(o ) | 筛孔尺寸(mm) | 振动频率(r/min) | 双振幅(mm) | 处理能力(m3/h) | 电机功率(kw) | 进料尺寸(mm) | 筛面规格(mm) |
| 2YKX1548 | 2 | 15 | 4-50 | 800-970 | 9.5-10.5 | 22-150 | 11 | 200 | 1500x4800 |
| 3YKX1548 | 3 | 15 | 4-50 | 800-970 | 22-150 | 15 | 200 | 1500x4800 | |
| 4YKX1548 | 4 | 18.5 | 4-50 | 800-970 | 22-155 | 15 | 200 | 1500x4800 | |
| 2YKX1860 | 2 | 18.5 | 4-80 | 800-970 | 32-312 | 18.5 | 200 | 1800x6000 | |
| 3YKX1860 | 3 | 22 | 4-80 | 800-970 | 32-312 | 22 | 200 | 1800x6000 | |
| 4YKX1860 | 4 | 22 | 4-80 | 800-970 | 32-336 | 30 | 200 | 1800x6000 | |
| 2YKX2160 | 2 | 20 | 4-100 | 970 | 50-475 | 22 | 400 | 2100x2600 | |
| 3YKX2160 | 3 | 20 | 4-100 | 970 | 50-475 | 30 | 400 | 2100x2600 | |
| 4YKX2160 | 4 | 20 | 4-100 | 970 | 50-497 | 30 | 400 | 2100x2600 | |
| 2YKX2170 | 2 | 20 | 4-100 | 970 | 60-500 | 22 | 400 | 2200x2600 | |
| 3YKX2170 | 3 | 20 | 4-100 | 970 | 60-500 | 30 | 400 | 2200x2600 | |
| 4YKX2170 | 4 | 20 | 4-100 | 970 | 60-500 | 30 | 400 | 2200x2600 | |
| 2YKX2460 | 2 | 20 | 4-100 | 970 | 65-550 | 37 | 400 | 2400x6000 | |
| 3YKX2460 | 3 | 20 | 4-100 | 970 | 70-620 | 37 | 400 | 2400x6000 | |
| 4YKX2460 | 4 | 20 | 4-100 | 970 | 80-680 | 37 | 400 | 2400x6000 | |
| 2YKX2470 | 2 | 20 | 4-100 | 800 | 80-1250 | 37 | 400 | 2400x7500 | |
| 3YKX2470 | 3 | 20 | 4-100 | 800 | 80-1250 | 37 | 400 | 2400x7500 | |
| 4YKX2470 | 4 | 20 | 4-100 | 800 | 80-1500 | 37 | 400 | 2400x7500 | |
| 2YKX3060 | 2 | 20 | 4-100 | 800 | 80-1500 | 2x22 | 400 | 3000x6000 | |
| 3YKX3060 | 3 | 20 | 4-100 | 800 | 80-1500 | 2x22 | 400 | 3000x6000 | |
| 4YKX3060 | 4 | 20 | 4-100 | 800 | 80-1500 | 2x30 | 400 | 3000x6000 | |
| 2YKX3080 | 2 | 20 | 4-100 | 800 | 70-1830 | 2x30 | 400 | 3000x7500 | |
| 3YKX3080 | 3 | 20 | 4-100 | 800 | 70-1830 | 2x37 | 400 | 3000x7500 | |
| 4YKX3080 | 4 | 20 | 4-100 | 800 | 80-1830 | 2x45 | 400 | 3000x7500 | |
| 2YKX3280 | 2 | 20 | 4-100 | 800 | 80-1800 | 2x37 | 400 | 3600x6000 | |
| 3YKX3280 | 3 | 20 | 4-100 | 800 | 80-1800 | 2x45kw | 400 | 3600x6000 | |
| 4YKX3280 | 4 | 20 | 4-100 | 800 | 80-1800 | 2x45kw | 400 | 3600x6000 | |
| 2YKX3680 | 2 | 20 | 4-100 | 800 | 80-1800 | 2x37 | 400 | 3600x6000 | |
| 3YKX3680 | 3 | 20 | 4-100 | 800 | 80-1800 | 2x45 | 400 | 3600x6000 | |
| 2YKX40100 | 2 | 20 | 4-100 | 800 | 100-2000 | 2x75 | 400 | 3600x6000 | |
| 3YKX40100 | 3 | 20 | 4-100 | 800 | 100-2000 | 2x75 | 400 | 3600x6000 |
